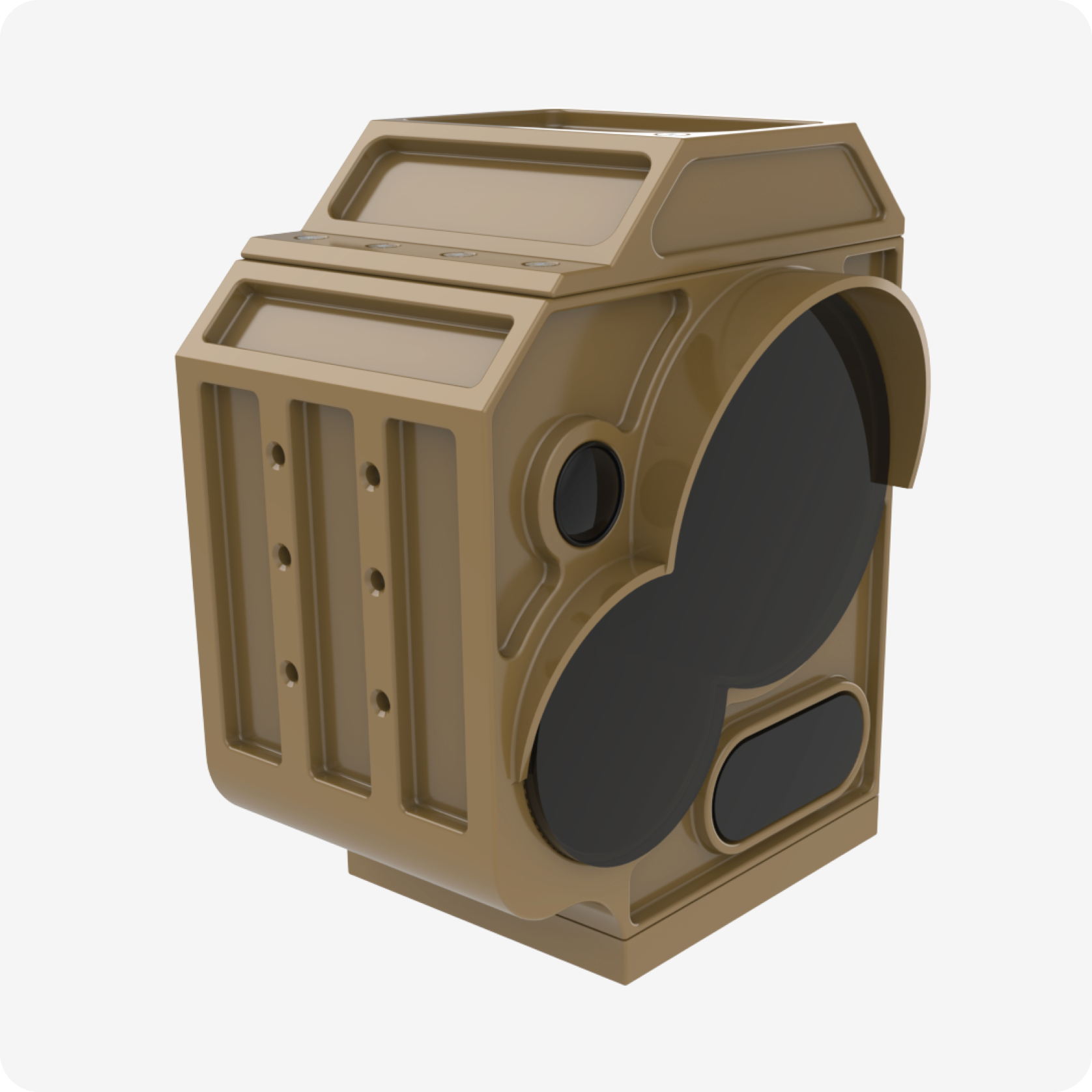

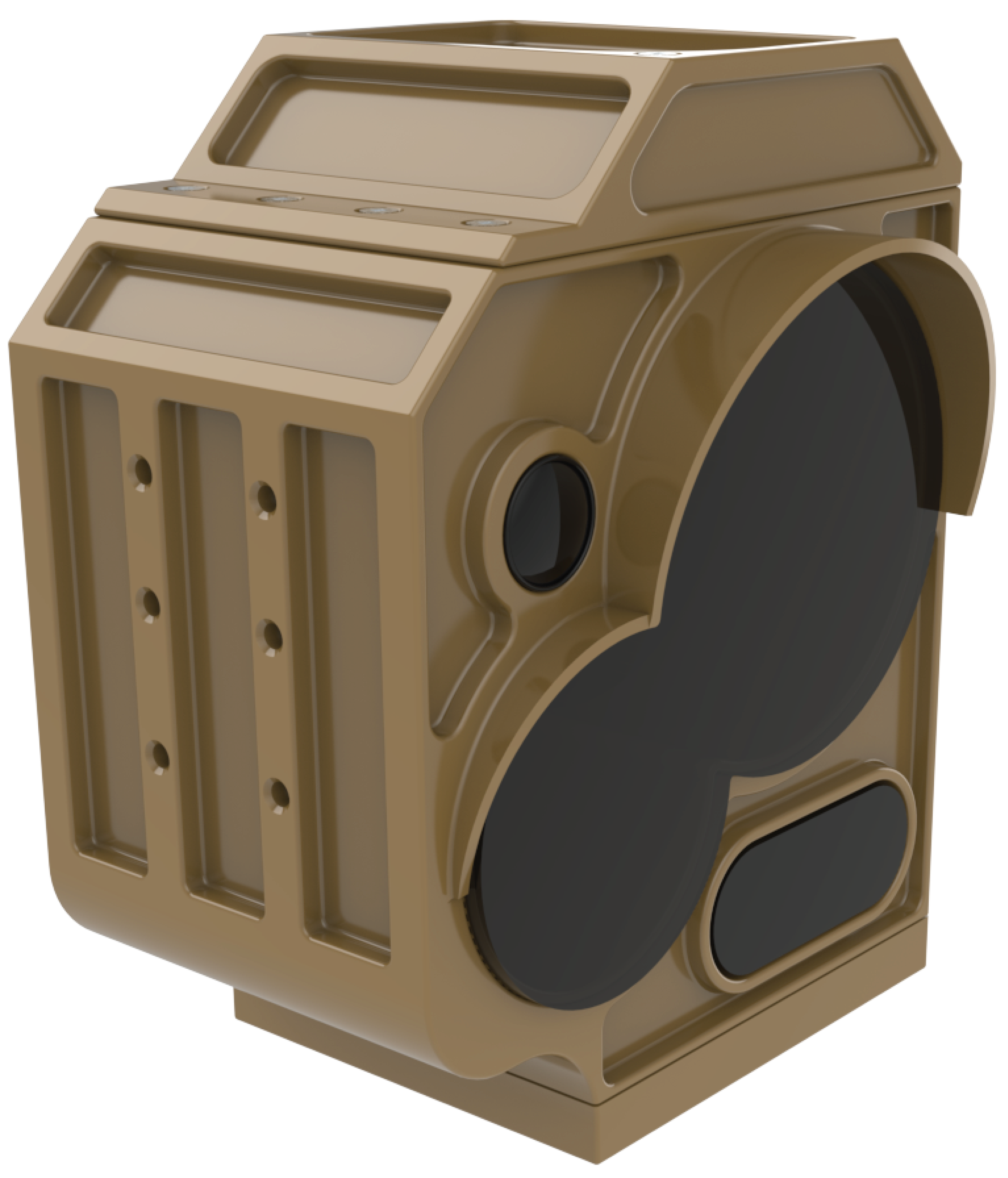

TRVG-LD
TRVG-S LD is an enhanced surveillance and fire support solution, designed to deliver real-time fire support across diverse weapon platforms. Thanks to its SWIR (Short Wave Infrared) Camera and laser pointer, TRVG LD provides enhanced visibility in harsh weather conditions and enhanced precision to guided munitions to lock on to the target.
TRVG LD’s modular architecture ensures easy integration with a wide range of weapon platforms and also it can be integrated with pan-tilt systems in order to be used stand-alone. It can be customized to address the unique operational requirements of different missions offering both flexibility and scalability.
Product Details
TRVG-LD
MARINE ISR SYSTEM
OPERATIONAL CAPABILITIES
| Target Tracking | EO & IR & SWIR |
|---|---|
| Target Detection and Classification | |
| Target Localization and Distance Estimation | |
| Object Types for Maritime Targe Classification |
Vehicle
Human Animal Herd Anti-Tank Weapon Military Vehicles |
| Decision Support & Fire Control |
Target Tracking Via Bounding Box Display
Target Tracking by Keeping in Frame Target Position and Distance Feedback |
Laser Designator
Laser Range Finder
User Interface Integration
Target Tracking
Inertial Measurement Unit
Integrated AI Processor
Object/Obstacle Detection
Object/Obstacle Classification
Object/Obstacle Estimation
| Visible Band Camera | |
|---|---|
| Focus Length | 15mm – 775mm |
| Zoom | 50X |
| Wide FOV | 26.5° x 20° |
| Narrow FOV | 0.5° x 0.4° |
| Resolution | 2048 x 1536 |
| Infrared Camera | |
|---|---|
| Detector Type | Cooled Mid-Wave Infrared (MWIR) |
| Focus Length | 35mm – 690mm |
| Zoom | 15X+ |
| Wide FOV | 20.72° x 11,75° |
| Narrow FOV | 1.06° x 0.6° |
| NETD | 20K |
| Resolution | 1280 x 720 |
| Special Capabilities | Electronic Image Stabilization Black Hot/White Hot Selection |
| SWIR Camera | |
|---|---|
| Detector Type | InGaAs |
| Resolution | 640 x 512 |
| Focus Length | 20mm – 200mm |
| Optical Zoom Level | 10X |
| Wide FOV | 24° x 19° |
| Narrow FOV | 1.8° x 1.5° |
| Laser Range Finder (LRF) | |
|---|---|
| Measurement Range (Maximum) | 32000m |
| Measurement Range (NATO Target) |
8500m (2.3m x 2.3m target)
(Reflection 30%, Observer Visibilty 25km) |
| Measurement Sensiblity | ≤ 1m |
| Laser Designator | |
|---|---|
| Visibility Range | 8000m |
| Designator Range | ≥ 4000m |
| Mechanical Specifications | |
|---|---|
| Dimensions | 110 x 75 x 79 cm |
| Weight | < 100 kg |
| Stabilization | 2 Axis – Gyro |
